Analysis packages

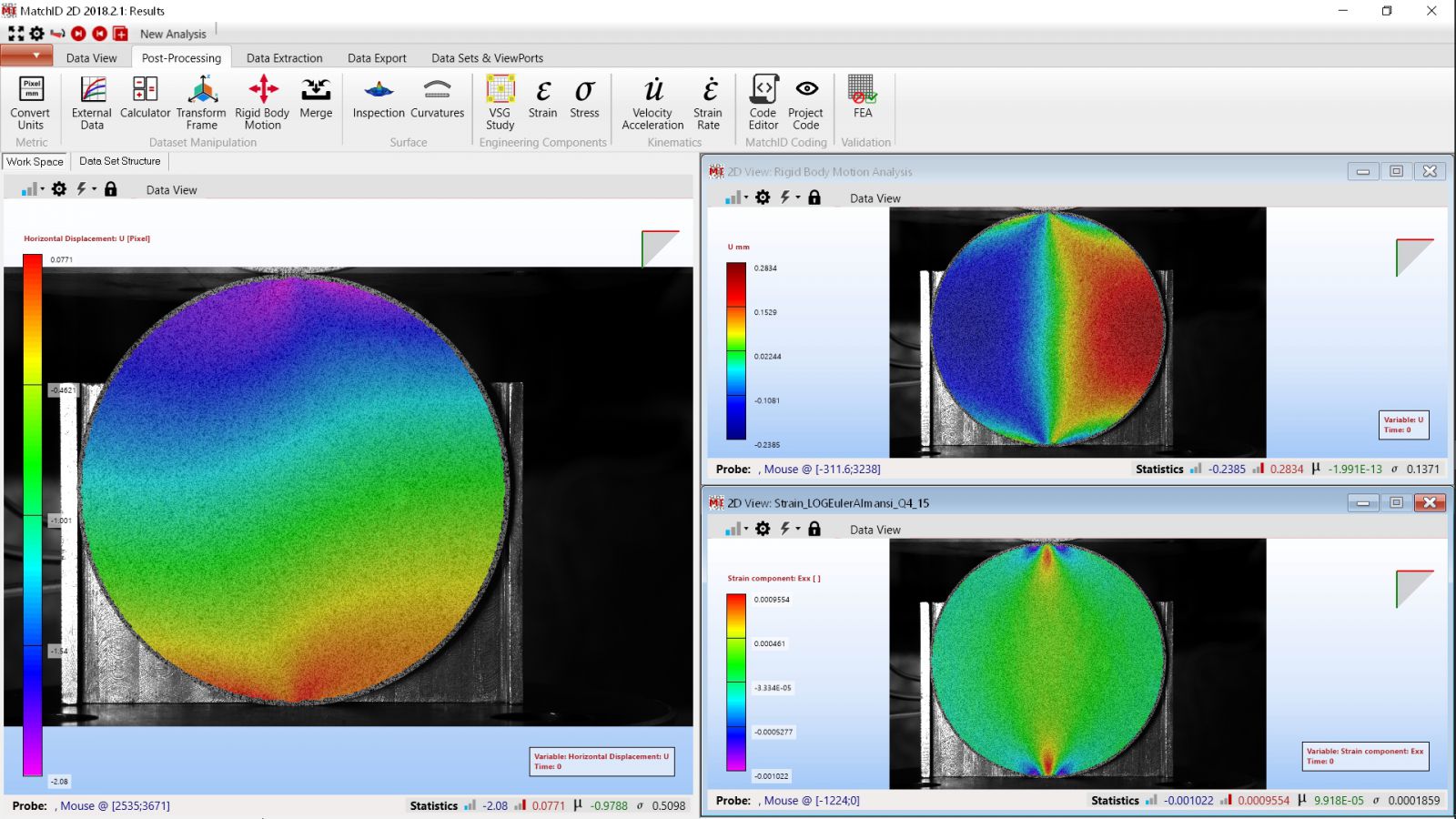

2D: 2D DIC and Grid for basic experiments
- Only 1 camera needed
- For in-plane experiments
- On flat specimens with a perpendicular camera alignment
- Grid method for fringe-pattern analysis: more optimum spatial resolution
- Batch-mode processing and access to all involved parameters
Download datasheet (pdf)

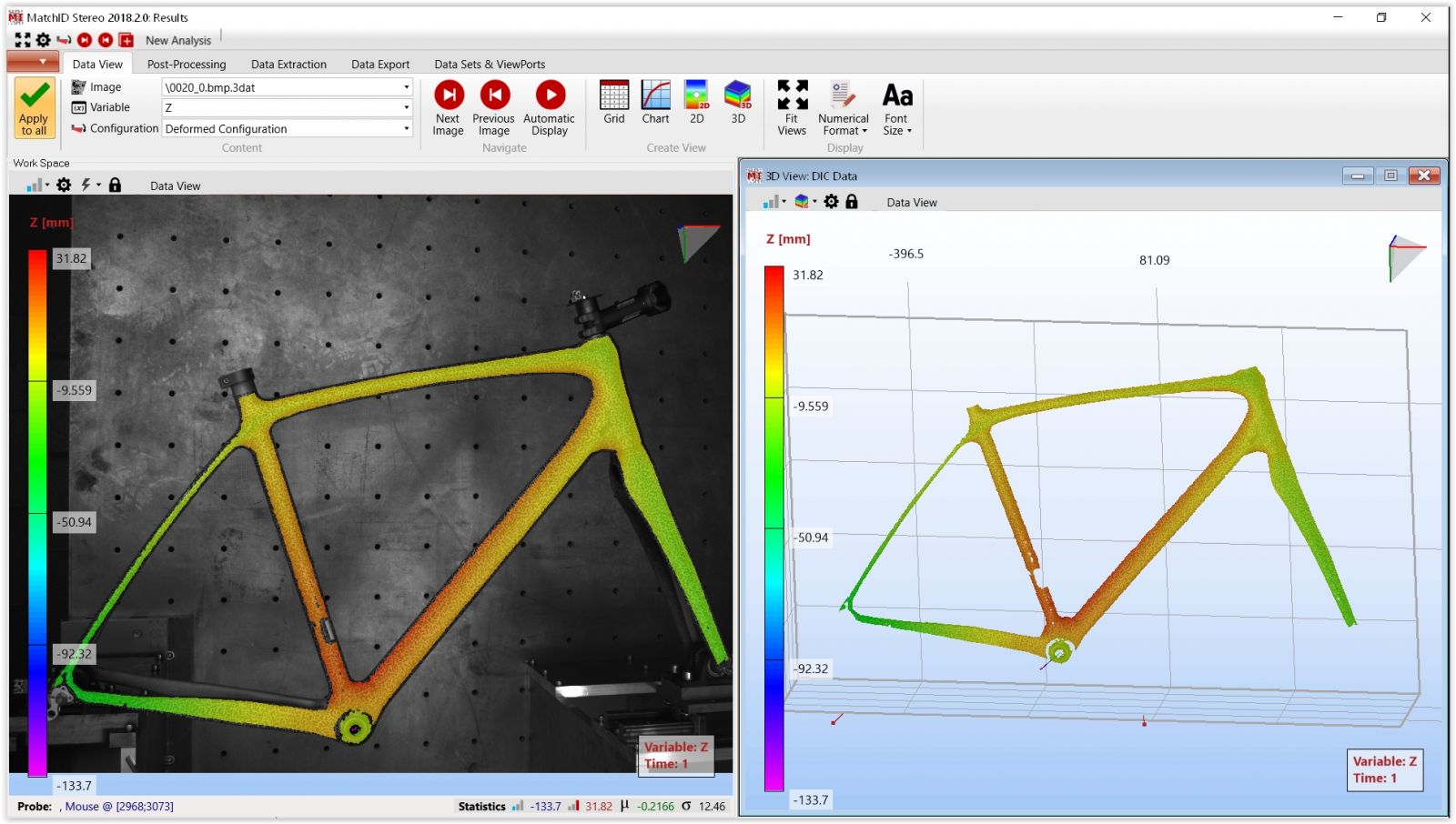

STEREO: Stereo-vision DIC for more demanding tests
- For any test involving out-of-plane motion
- For structural component testing
- 2 camera bases for stereo-vision involving a dedicated calibration proces
- Batch-mode processing and access to all involved parameters
Download datasheet (pdf)

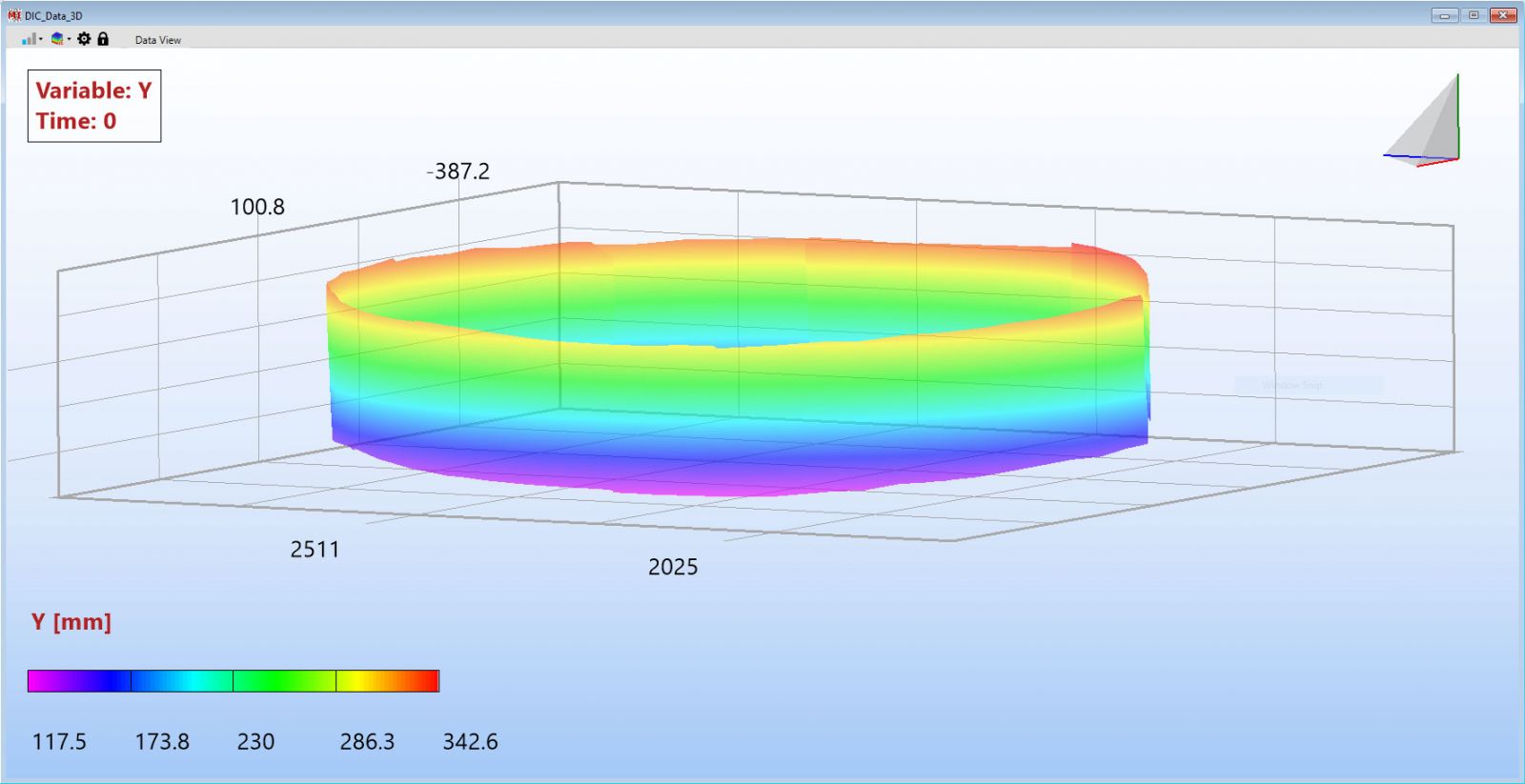

MULTI: Multi-Camera DIC for a complete 360° capture
- Direct calibration of 3 or more cameras involved
- Individually identify and position each camera in space
- Reduce the number of cameras needed for a complete 360° capture
Download datasheet (pdf)
Standard
MatchID Results Viewer
All packages by default integrate a very flexible results viewer and data analysis package, including:
- Dataset and multi-viewport concept
- Extraction tools and chart generation
- Data export in various formats (*.csv,*.mat,*.bmp, *.avi,*.mp4)
- Strain, strain rates, velocities, accelerations, ... and stress reconstruction
- Rigid body motion compensation, Coordinate frame transformations and alignment tools, Surface inspection and curvatures
- FFT and modal analysis tools
- Coding and custom application development
- Project and data sharing to non-licensed users
Standard
PA: Performance Analysis module
- Unique convergence study
- Make concise choices on DIC user-dependent settings
- Generate metrological charts
Standard
FEDEF: Synthetic image deformation
- Generate benchmark FEA-based synthetic images with known values
- Evaluate the inherent systematic error in DIC
- Create a virtual test campaign to optimize experiments
Rely on our expert support
Contact us to discuss the best set-up and specification for optimal experiment results.
